Indoor Panels
We carry a variety of temporary power panels for various uses ranging from basic power to specialty circuits for coffee machines and stoves. Units feature inputs ranging from 30A to 800A. These panels are only permitted to be used indoors.
100A Indoor Panel - Type B
100A-120/208V Cam-Lok Input
Main Breaker: 100A
8 x 30A-125/250V L14-30 Twistlock Outputs
1 x 30A-120/208V L21-30 Twistlock Output
9 x 15A-125V U-Ground Outputs

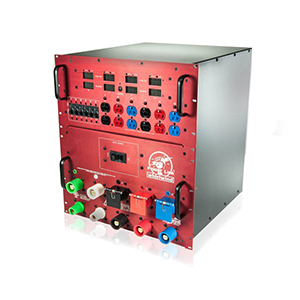

200A Indoor Panel - Type B
200A-120/208V Cam-Lok Input with Thru
Main Breaker: None
8 x 30A-125/250V L14-30 Twistlock Outputs
2 x 50A-125/250V CS6369 Twistlock Outputs
1 x 30A-120/208V L21-30 Twistlock Output

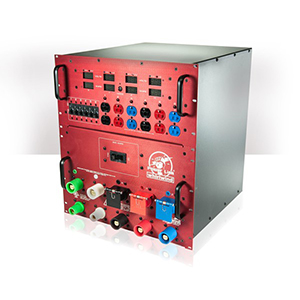

200A Indoor Panel - Type C
200A-120/208V Cam-Lok Input with Thru (Single Phase)
Main Breaker: None
4 x 30A-125/250V L14-30 Twistlock Outputs
4 x 50A-125/250V CS6369 Outputs

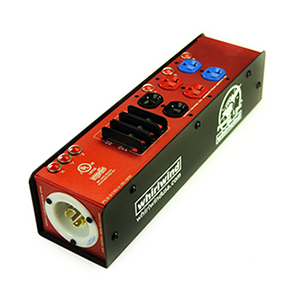

30A Indoor Panel - Type A
30A-125/250V L14-30 Twistlock Input
Main Breaker: None
3 x 15A-125V U-Ground Outputs
1 x 20A-125V U-Ground Output
400A Indoor Panel - Type A
400A-120/208V Cam-Lok Input
Main Breaker: None
6 x 60A-120/208V Pin & Sleeve Outputs HBL560R9W
1 x 30A-120/208V L21-30 Output

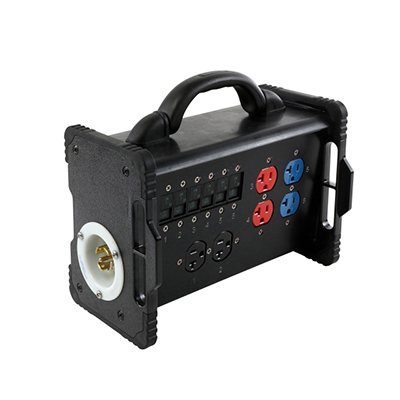

50A Indoor Panel - Type A
50A-125/250V CS6365 Twistlock Input
Main Breaker: None
4 x 15A-125V U-Ground Outputs
2 x 20A-125V U-Ground Outputs
1 x 30A-125/250V L14-30 Output

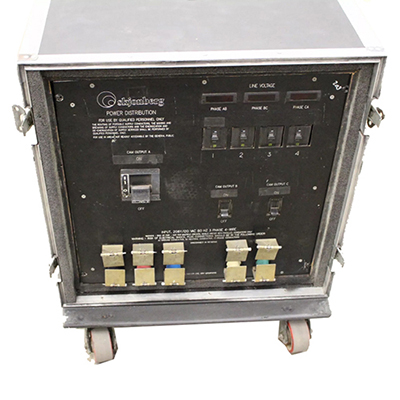

800A Indoor Panel - Type A
800A-120/208V Dual Cam-Lok Input
Main Breaker: None
2 x 30A-120/208V L21-30 Twistlock Outputs
2 x 50A-250V CS8369 Twistlock Outputs
2 x 200A-120/208V Cam-Lok Outputs
1 x 400A-120/208V Dual Cam-Lok Output
1 x 20A-125V U-Ground Output
